SkeleWAM compresses manipulation into a sparse 3D skeleton

SkeleWAM replaces visual-future reconstruction with robot joints, object centers and interaction points, using future geometry as training-only supervision.

Preprint · arXiv v1 · 10,030 LIBERO-Plus variants · 100 physical trials per evaluated method · project demos public · no code release verifiedSource date: Read the primary source ↗
world action modelsparse 3D skeletoninteraction pointsrobot manipulation

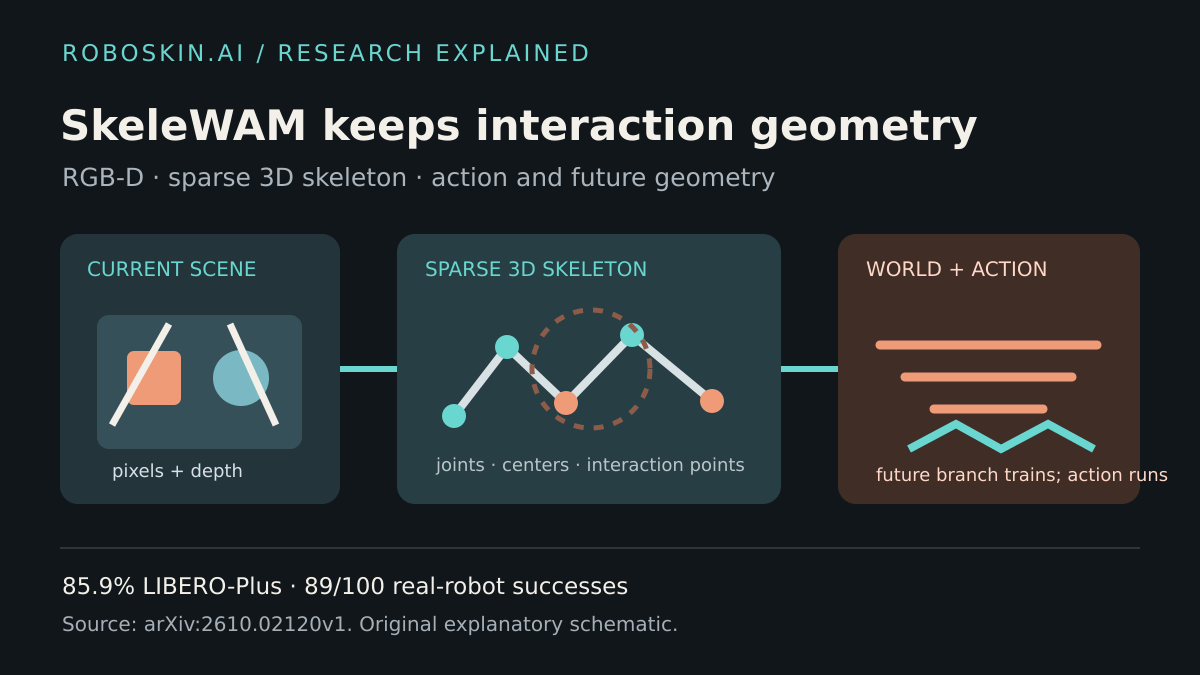

Diagram showing RGB-D observations converted to a sparse three-dimensional skeleton of robot joints, object centers and interaction points before action generation.
Original RoboSkin.ai schematic of SkeleWAM’s sparse geometric state. It is explanatory artwork, not an experimental figure.

Peking University researchers released SkeleWAM on October 1, 2026, asking whether a world action model needs to predict pixels at all. The model converts RGB-D observations and robot proprioception into a sparse 3D skeleton of robot joints, object centers and interaction points. It jointly learns actions and future skeletons during training, then removes the future-prediction branch at inference. Paper and version record.

Explore tactile datasets for the broader comparison.

Key takeaways

  • The RGB-D model has about 57.1 million parameters and reports 85.9% on 10,030 LIBERO-Plus perturbation variants, 3.7 points above the compared Cosmos-Policy result.
  • Removing future-skeleton supervision reduces success from 85.9% to 80.1%, even though both variants use the same action-only inference path.
  • On five ARX R5 tasks with 20 trials each, SkeleWAM records 89/100 successes; the margin over Cosmos-Policy is two percentage points.

A geometry-first world state

Many world action models predict a future video or a latent produced by a visual encoder. Those targets can preserve appearance that is unrelated to control while leaving contact geometry implicit. SkeleWAM instead builds object centers and manipulation-relevant interaction points from RGB-D, adds robot keypoints from forward kinematics and expresses them in a shared robot-centric frame.

A shared world expert processes the current skeleton and language. Separate flow-matching heads predict a 32-step action chunk and eight future skeleton states. The future head is training-only. At inference, Medoid Action Consensus samples three trajectories, compares their first ten motion steps and executes the representative candidate rather than averaging possibly incompatible actions. The default controller executes 16 actions before rebuilding the skeleton. Architecture and ablations.

Results and comparison boundaries

The main simulation benchmark covers seven perturbation categories. SkeleWAM reaches 93.4% under camera changes, 71.9% for robot initial-state changes, 89.1% for language, 94.7% for lighting, 96.0% for background, 93.9% for noise and 66.6% for layout, averaging 85.9%. Cosmos-Policy reports 82.2% overall and 75.8% for camera perturbations. However, π0.5 reaches 84.1% on layout changes versus SkeleWAM’s 66.6%; sparse geometry does not eliminate spatial-generalization failures.

The privileged sim-state skeleton reaches 87.7%, only 1.8 points above RGB-D overall, but still only 69.0% on layout. That indicates perception error is not the sole cause of the layout weakness. The policy itself must generalize to different spatial arrangements.

Physical evaluation uses an ARX R5 with external and wrist-mounted RealSense cameras. Across Open Drawer, Close Drawer, Stack Blocks, Stack Bowls and Put Block in Drawer, SkeleWAM reports 80%, 90%, 90%, 95% and 90%, respectively—89 successes across 100 trials. Cosmos-Policy totals 87/100, Fast-WAM 83/100 and π0.5 76/100 under the authors’ setup. This is a useful hardware check, but the two-success margin over Cosmos-Policy is small and no confidence interval is supplied.

RoboSkin analysis

SkeleWAM’s editorially important result is the ablation, not only the leaderboard. Centers alone score 82.3%; interaction points alone score 77.7%; combining them scores 85.9%. Static location and task-relevant contact geometry carry complementary information. That is a practical design clue for robot world models and contact-rich manipulation: a compact state should preserve both where an object is and where the policy can act on it.

The system is not tactile. Interaction points are inferred from RGB-D rather than measured through touch. A visuo-tactile world model could use the skeleton as a geometric backbone while adding force, slip or contact-state evidence that cameras cannot recover under occlusion.

Limitations and availability

The manuscript is an arXiv v1 preprint, and RoboSkin.ai has not reproduced it. Training and evaluation use one RTX 4090 in the reported implementation, but training time and end-to-end control latency are not given. Hardware evidence covers one arm, five tabletop tasks and 20 trials per task. The benchmark’s strongest weakness is layout change, and the real-world comparison is too small to establish broad superiority.

The official project provides figures, result tables and recorded demonstrations. The November 4 project review did not verify an implementation repository, checkpoint, training dataset, perception model package or software license. The paper is posted under CC BY-NC-ND 4.0, which covers the manuscript rather than establishing terms for implementation assets.

Action consensus is not a contact or outcome check

Three sampled trajectories can agree and still be wrong about the object. MAC selects a representative motion; it does not simulate and score each candidate's physical consequence. The future-skeleton branch is removed at deployment, and the training attention design keeps action and future branches from attending to each other. Thus the method should not be presented as an online counterfactual planner. Architecture and MAC protocol.

InterfaceWhat to verify in a proposed integration
Landmark constructionCamera calibration, shared frame, node identity/order and behavior when a point is missing or occluded
Consensus selectionNormalization and which motion coordinates enter the distance; agreement does not establish grasp retention
Executed prefixSixteen executed steps versus the ten-step comparison window; record the next actual observation
Physical confirmationMeasured object/task outcome after the action, rather than confidence inferred from sample agreement

Sampling and replanning are not monotonic performance knobs. The reported ablation peaks at three candidates rather than five or ten. Executing five steps before replanning also scores below the sixteen-step default. Those results are setup-specific, but they rule out a simple claim that more sampling or more frequent replanning always improves performance.

For a new object, retain the RGB-D estimate, landmark identities and action prefix with the outcome. A proposed test should include occlusion and a changed layout, since the privileged-state comparison still struggles with layout changes. Geometric point proximity is not measured force, slip or successful contact. The world-model interface comparison separates this training-only prediction role from online tactile forecasts and action scoring.

*Source review updated November 4, 2026. Original publication dates are retained. Research results are author-reported; RoboSkin has not run these models or robot experiments.*
